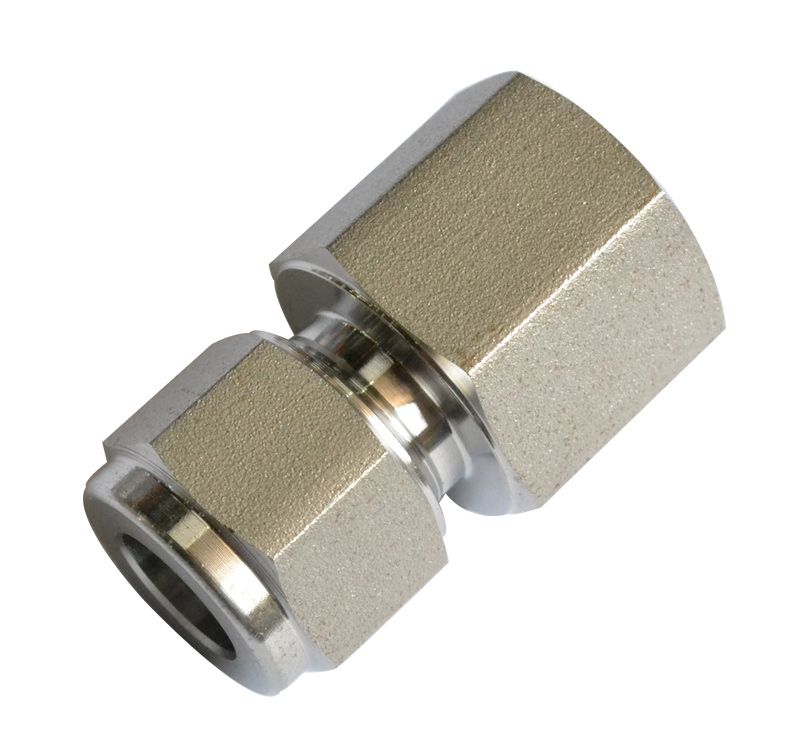

内螺纹直通接头
内螺纹直通接头
| 品牌：华升 | 型号：HS-JT | 加工定制：是 | ||||
| 材质：不锈钢 | 公称直径：可定制 mm |
产品特性：不锈钢内螺纹直通接头,不锈钢直通接头,304内螺纹直通接头,直通接头
产品简介：品牌:华升 ;型号:HS-JT ;加工定制:是 ;材质:不锈钢 ;公称直径:可定制 mm
金湖县华升计量仪器有限公司
详细介绍：

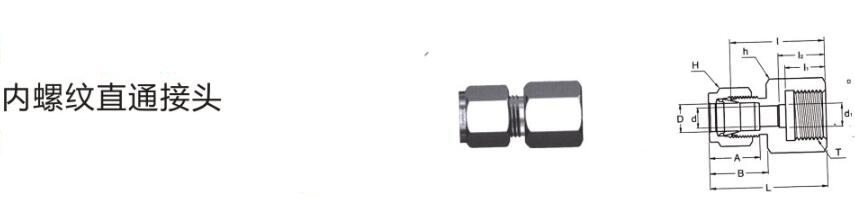

连接公制管道和公ISO螺纹
| 型号 | 管外径O.D. D(inch) |
T G(PF) |
d Min |
d1 | 宽度 | A | B | I | I1 | I2 | L | |
| h(inch) | H(inch) | |||||||||||
| 4-4G | 1/4 | 1/4 | 4.82 | 5.58 | 3/4 | 9/16 | 15.24 | 17.78 | 30.22 | 13 | 17 | 37.59 |
| 4-6G | 1/4 | 3/8 | 4.82 | 6.6 | 15/16 | 9/16 | 15.24 | 17.78 | 30.22 | 14.2 | 20.3 | 37.59 |
| 4-8G | 1/4 | 1/2 | 4.82 | 6.6 | 1-1/16 | 9/16 | 15.24 | 17.78 | 36.07 | 18.8 | 24.9 | 43.43 |
| 5-4G | 5/16 | 1/4 | 5.58 | - | 3/4 | 5/8 | 16.25 | 18.54 | 30.98 | 13 | - | 38.35 |
| 5-8G | 5/16 | 1/2 | 7.11 | - | 1-1/16 | 5/8 | 16.25 | 18.54 | 33.53 | 18.8 | - | 40.89 |
| 6-4G | 3/8 | 1/4 | 5.58 | - | 3/4 | 11/16 | 16.76 | 19.3 | 31.75 | 13 | - | 39.12 |
| 6-6G | 3/8 | 3/8 | 6.6 | - | 15/16 | 11/16 | 16.76 | 19.3 | 31.24 | 14.2 | - | 38.61 |
| 6-8G | 3/8 | 1/2 | 7.11 | - | 1-1/16 | 11/16 | 16.76 | 19.3 | 34.54 | 18.8 | - | 41.91 |
| 8-4G | 1/2 | 1/4 | 5.58 | - | 7/8 | 7/8 | 22.86 | 21.84 | 31.8 | 13 | - | 41.95 |
| 8-6G | 1/2 | 3/8 | 6.6 | - | 15/16 | 7/8 | 22.86 | 21.84 | 34.29 | 14.2 | - | 44.45 |
| 8-8G | 1/2 | 1/2 | 7.11 | 7.11 | 1-1/16 | 7/8 | 22.86 | 21.84 | 38.1 | 18.8 | - | 48.26 |
连接英制管道和ISO螺纹
| 型号 | 管外径O.D. D(inch) |
T G(PF) |
d Min |
d1 | 宽度 | A | B | I | I1 | I2 | L | |
| h(inch) | H(inch) | |||||||||||
| 4-4G | 1/4 | 1/4 | 4.82 | 5.58 | 3/4 | 9/16 | 15.24 | 17.78 | 30.22 | 13 | 17 | 37.59 |
| 4-6G | 1/4 | 3/8 | 4.82 | 6.6 | 15/16 | 9/16 | 15.24 | 17.78 | 30.22 | 14.2 | 20.3 | 37.59 |
| 4-8G | 1/4 | 1/2 | 4.82 | 6.6 | 1-1/16 | 9/16 | 15.24 | 17.78 | 36.07 | 18.8 | 24.9 | 43.43 |
| 5-4G | 5/16 | 1/4 | 5.58 | - | 3/4 | 5/8 | 16.25 | 18.54 | 30.98 | 13 | - | 38.35 |
| 5-8G | 5/16 | 1/2 | 7.11 | - | 1-1/16 | 5/8 | 16.25 | 18.54 | 33.53 | 18.8 | - | 40.89 |
| 6-4G | 3/8 | 1/4 | 5.58 | - | 3/4 | 11/16 | 16.76 | 19.3 | 31.75 | 13 | - | 39.12 |
| 6-6G | 3/8 | 3/8 | 6.6 | - | 15/16 | 11/16 | 16.76 | 19.3 | 31.24 | 14.2 | - | 38.61 |
| 6-8G | 3/8 | 1/2 | 7.11 | - | 1-1/16 | 11/16 | 16.76 | 19.3 | 34.54 | 18.8 | - | 41.91 |
| 8-4G | 1/2 | 1/4 | 5.58 | - | 7/8 | 7/8 | 22.86 | 21.84 | 31.8 | 13 | - | 41.95 |
| 8-6G | 1/2 | 3/8 | 6.6 | - | 15/16 | 7/8 | 22.86 | 21.84 | 34.29 | 14.2 | - | 44.45 |
| 8-8G | 1/2 | 1/2 | 7.11 | 7.11 | 1-1/16 | 7/8 | 22.86 | 21.84 | 38.1 | 18.8 | - | 48.26 |
